Inside a vintage triangle Big Muff

..:: this webpage belongs to www.singlecoil.com - the musicians DIY electronics source for free ::..

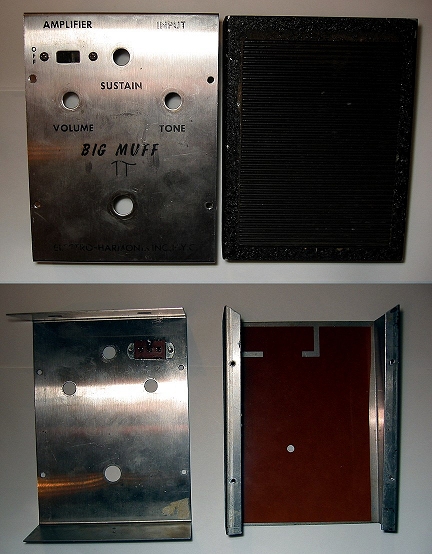

original triangle Big Muff box

The original box with the knobs taken off


original triangle Big Muff box in detail

The original box in detail

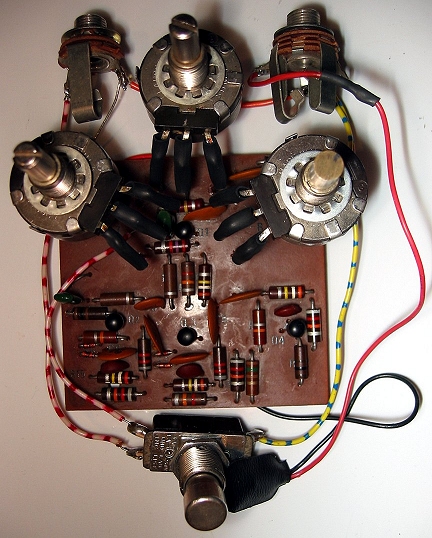

the guts in detail

The guts in detail


... more details

... more details

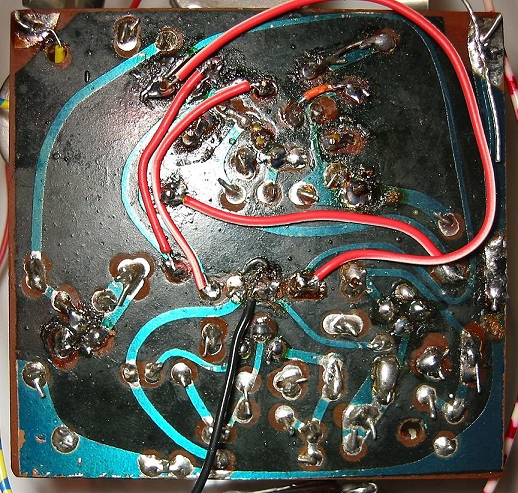

The PCB from underneath

The PCB from underneath

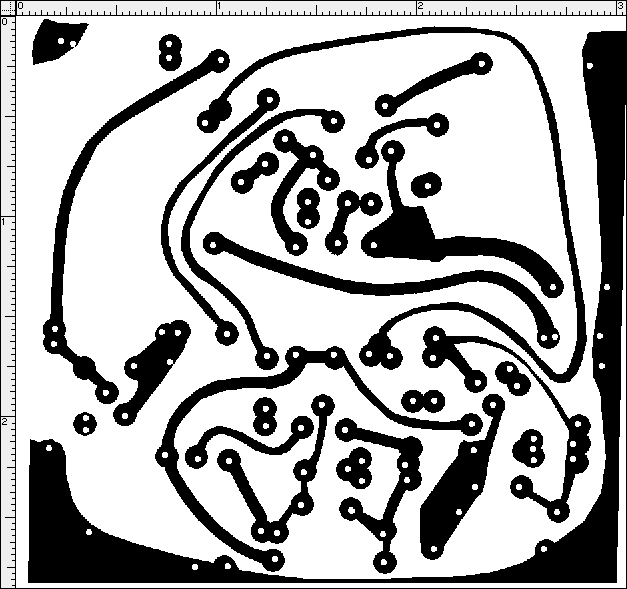

The PCB pattern

The PCB pattern

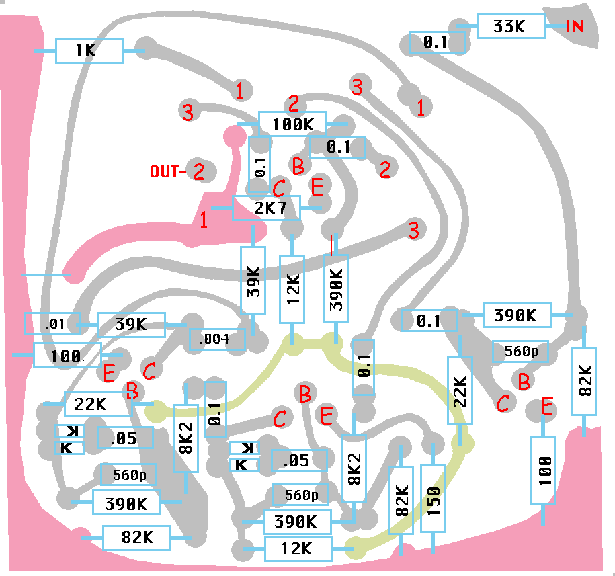

The populated PCB pattern

The populated PCB pattern

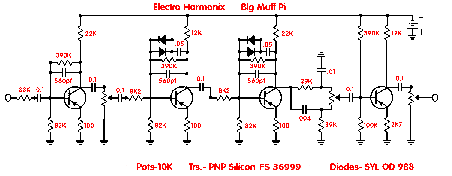

The circuit drawing

The circuit drawing (click to enlarge)
